Direct to Garment Printing Machine
- 发布日期：2025-06-02
- 访问量：1045 次
DIY personalized customization, batch printing, high-speed and efficient, time-saving and labor-saving. One machine for multiple uses, can print textile clothing such as T-shirts, shopping bags, socks, hoodies, etc
- 产品介绍
- 相关产品

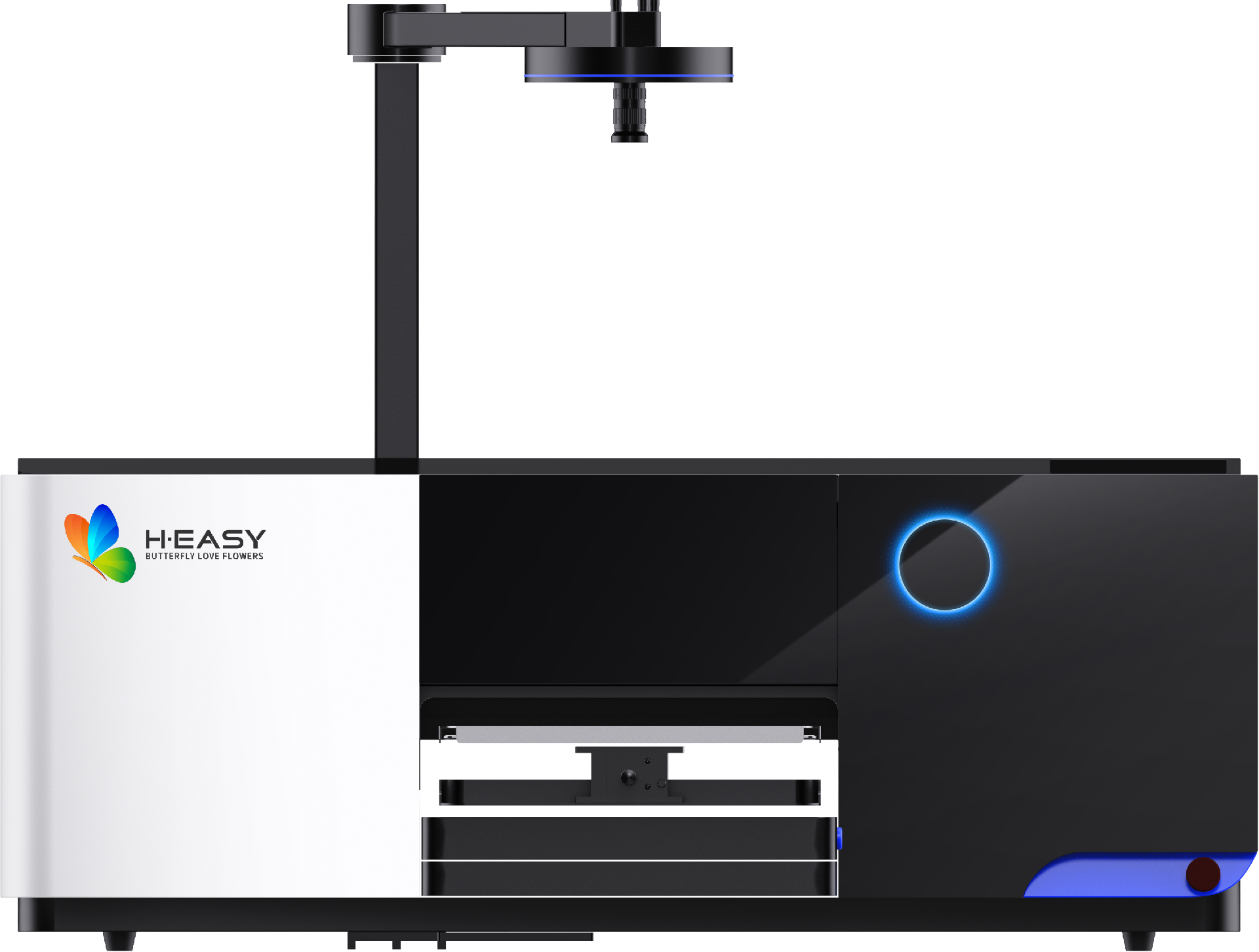

Direct to Fabric Printer
H·EASY: 4050
HIGH SPEED · HIGH STABILITY · LOW COST
APPLICATIONS
Print what you want, not just T-shirts
Personalized customization brings your unique designs to life. H·EASY 4050 DTG printer helps you effortlessly create a trendy brand！
No need for plate making: suitable for small batch production, reduce the starting cost.
High-precision printing: supports complex patterns, gradient colours, and photo-quality effect.
Environmentally friendly materials: use water-based ink,in line with environmental standards.
Multi-material adaptability: cotton, polyester, blended and other fabrics..

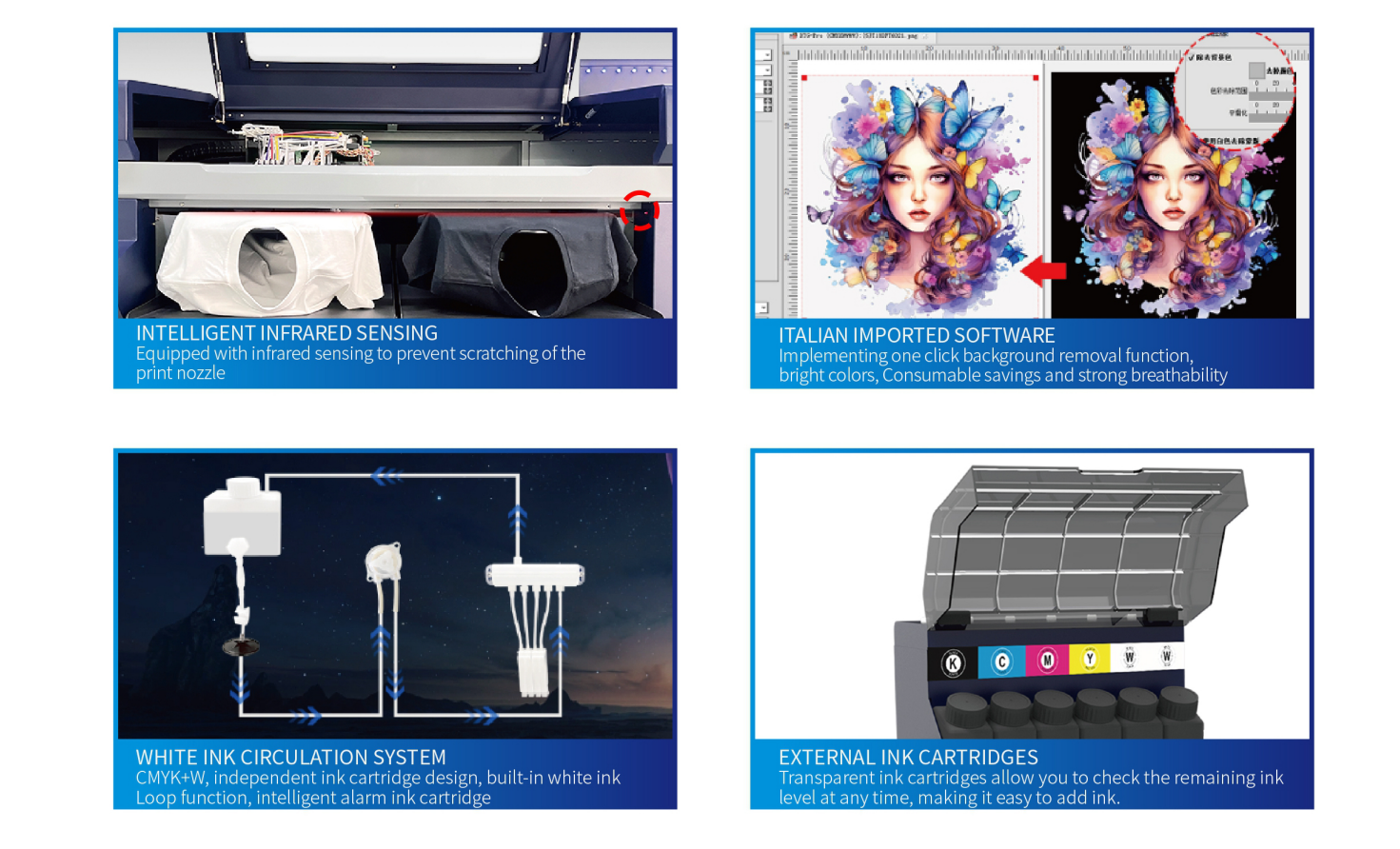

Convenient operation: touch interface, automated cleaning system, quick-change design.
MACHINE PARAMETERS
EQUIPMENT MODEL HY-DTG-D PRINT THICKNESS 0-30mm
SPRAY NOZZLE MODEL KS1680H PRINTING ACCURACY 1200x1200dpi、1200x1800dpi NUMBER OF PRINTHEAD 1680 PRINTING METHOD White and Color NUMBER OF NOZZLES 4 PRINTING SPEED 40 seconds/A3image PRINT WIDTH 35.56mm PRINTING DIRECTION Unidirectional and bidirectional NOZZLE RESOLUTION 600dpi(2 colors, 1 color)、300dpi(4 colors) PRINTING SOFTWARE Power Plotter 7 COLOR COUNT 4 channels, 4 colors PRINT GUARANTEE SCOPE Temperature:18-30°c
Humidity: 45-65% (no condensation
SPEED 30~60Khz DISPLAY RESOLUTION Not less than XGA(1024 x768) INK DROPLET SIZE 3.5~19PL GRAPHIC FORMAT Tiff/JPg/Eps/Ai/Ps/Png/Cdr/Pdf SPRAY INTENSITY 7~9m/s INK TYPE Environmentally friendly textilecoatingink INK Water based.solvent, UV VOLTAGER EQUIREMENTS AC220V/60Hz士1Hz INK VISCOSITY 3~9CPS EOUIPMENT POWER 300W EQUIPMENT SIZE 1900mmx1350mmx870mm EOUIPMENT WEIGHT 252KG PRINTING RANGE 450mm*600mm、372mm*420mm、255mm*305mm、870mm*420mm、870mm*420mm、950mm*600mm
