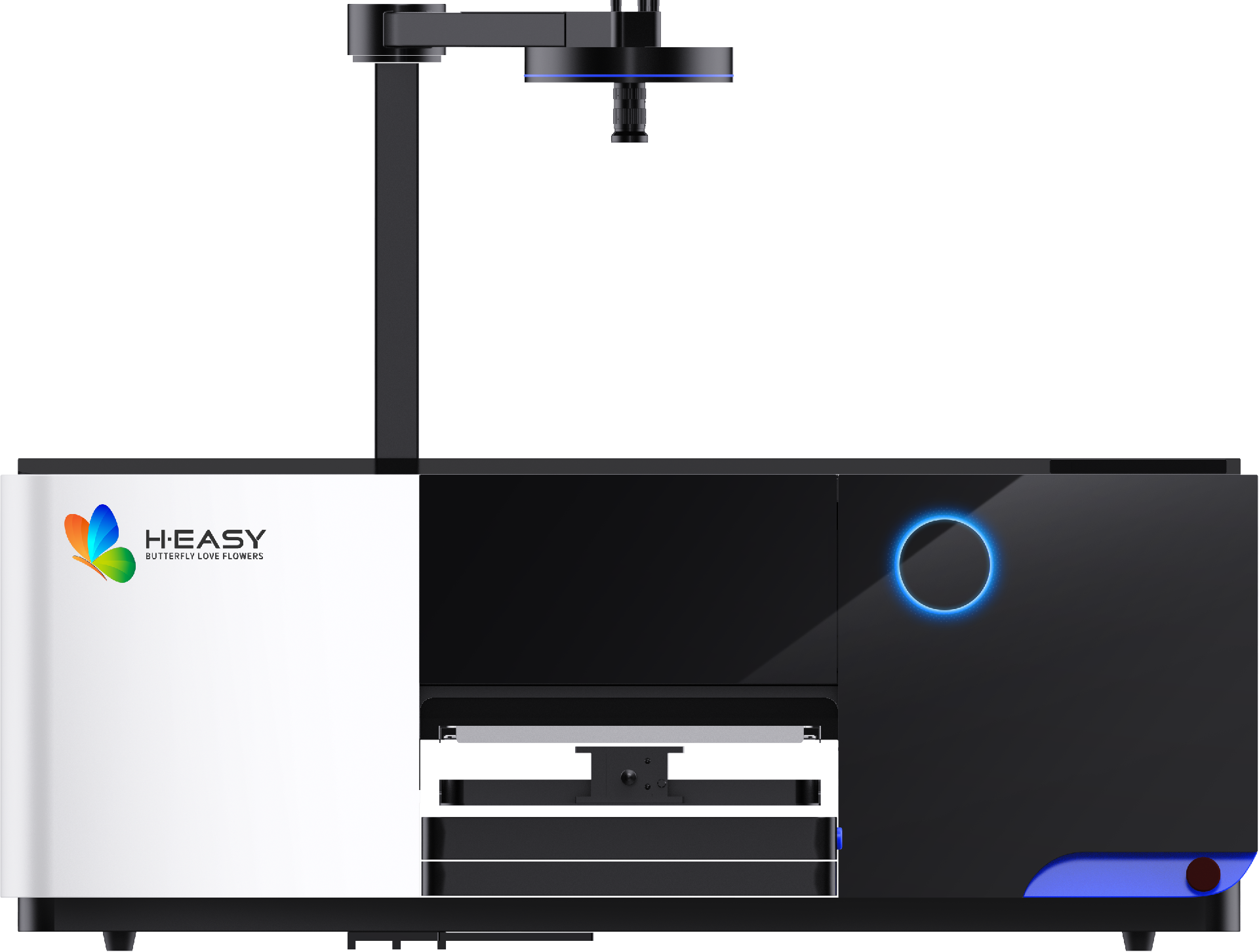

Direct to Garment Printer
H-EASY DTG
Color Saturation · Soft and Breathable · Natural Touch
Key Features of DTG Machines
Eliminates traditional printing plates, enabling direct pattern printing from digital designs via computer control. Ideal for one-off customizations or small-batch production (e.g., cultural merchandise, corporate apparel, personalized gifts).
Supports full-color CMYK printing with high-resolution image reproduction (e.g., photos, gradients, complex line art). Smooth color transitions suit intricate artistic designs or photographic works.
Primarily designed for cotton or high-cotton-content fabrics (excellent ink absorption). Pre-treatment solutions enable limited compatibility with blends (e.g., polyester-cotton), but performance on hydrophobic fabrics (e.g., pure polyester) is restricted.
Uses water-based inks (environmentally friendly, solvent-free), producing no wastewater or emissions during printing. Aligns with modern sustainable manufacturing trends.
Typical process:
① Pre-treat fabric (enhance ink adhesion) → ② Secure garment on printing platform → ③ Computer-controlled nozzle printing → ④ High-temperature drying/curing (e.g., UV lamps or heat presses).PRODUCT FEATURES
APPLICATIONS
Print what you want, not just T-shirts
Personalized Customization: Creative T-shirts, couples' apparel, graduation memorabilia.
Small-Batch Production: Independent fashion brands, niche streetwear, corporate event merchandise.
Cultural & Gift Items: Tourist souvenirs (e.g., canvas bags with local landmarks), holiday-themed products.
Print-on-Demand (POD): E-commerce platforms (fulfill orders as needed, reduce inventory overhead).
MACHINE PARAMETERS
EQUIPMENT MODEL HY-DTG-D PRINT THICKNESS 0-30mm
SPRAY NOZZLE MODEL KS1680H PRINTING ACCURACY 1200x1200dpi、1200x1800dpi NUMBER OF PRINTHEAD 1680 PRINTING METHOD White and Color NUMBER OF NOZZLES 4 PRINTING SPEED 40 seconds/A3image PRINT WIDTH 35.56mm PRINTING DIRECTION Unidirectional and bidirectional NOZZLE RESOLUTION 600dpi(2 colors, 1 color)、300dpi(4 colors) PRINTING SOFTWARE Power Plotter 7 COLOR COUNT 4 channels, 4 colors PRINT GUARANTEE SCOPE Temperature:18-30°c
Humidity: 45-65% (no condensation
SPEED 30~60Khz DISPLAY RESOLUTION Not less than XGA(1024 x768) INK DROPLET SIZE 3.5~19PL GRAPHIC FORMAT Tiff/JPg/Eps/Ai/Ps/Png/Cdr/Pdf SPRAY INTENSITY 7~9m/s INK TYPE Environmentally friendly textilecoatingink INK Water based.solvent, UV VOLTAGER EQUIREMENTS AC220V/60Hz士1Hz INK VISCOSITY 3~9CPS EOUIPMENT POWER 300W EQUIPMENT SIZE 1900mmx1350mmx870mm EOUIPMENT WEIGHT 252KG PRINTING RANGE 450mm*600mm、372mm*420mm、255mm*305mm、870mm*420mm、870mm*420mm、950mm*600mm Comparison with Other Printing Technologies

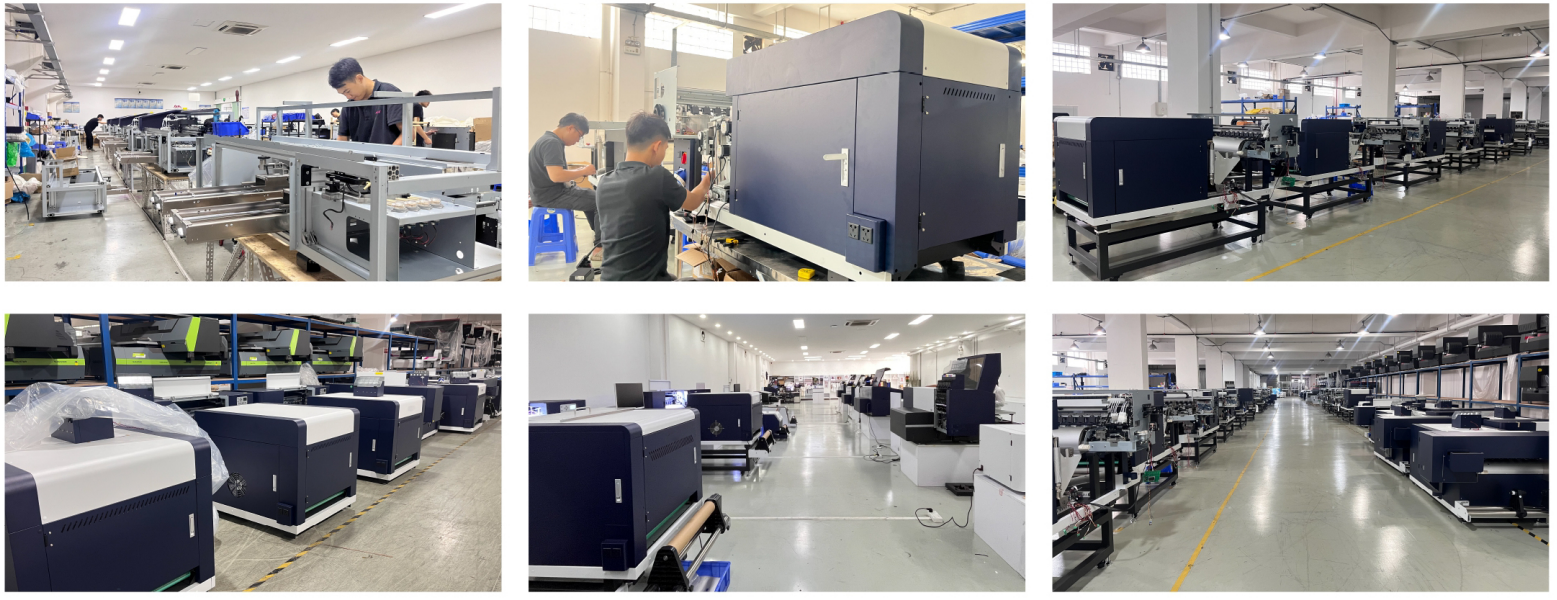

ORIGINAL FACTORY
