HY-DTG MACHINE

发布日期：2025-06-04
访问量：1025 次

DIY personalized customization, batch printing, high-speed and efficient, time-saving and labor-saving. One machine for multiple uses, can print textile clothing such as T-shirts, shopping bags, socks, hoodies, etc

产品介绍
相关产品

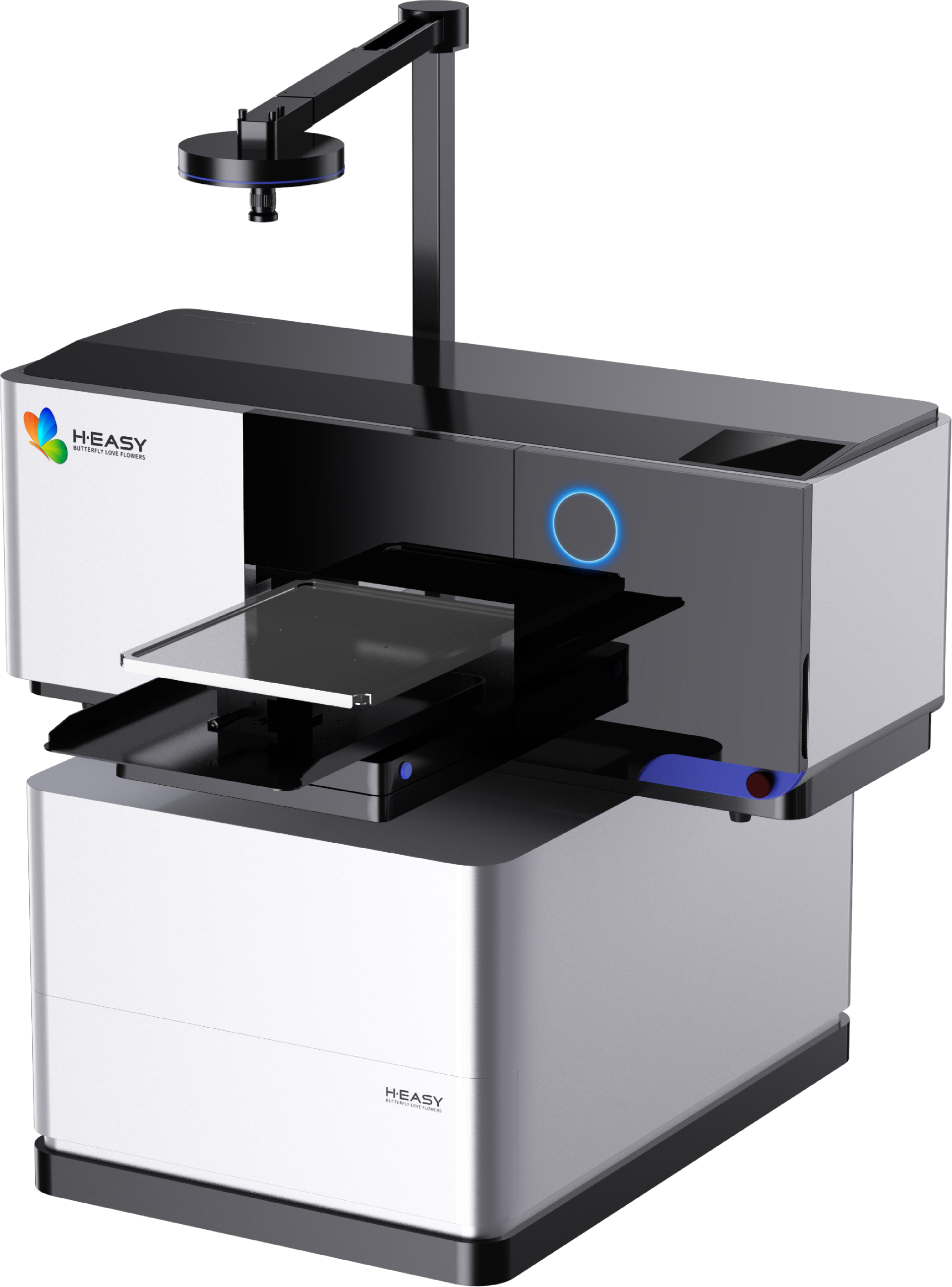

H-EASY DTG
Direct-to-Garment Printer

Revolutionize your apparel printing with industrial-grade precision, unmatched versatility, and eco-friendly performance.

Instant UV Curing Technology

Magnetic Linear Motor Drive

1200x1200 DPI Resolution

Revolutionary Printing Technology

The H-EASY DTG combines high-quality components for unmatched printing precision, speed, and versatility in apparel decoration.

Technical Specifications

Engineered for industrial-grade performance with precision components and intelligent systems.

EQUIPMENT MODEL	HY-DTG-D	PRINT THICKNESS	0-30mm
SPRAY NOZZLE MODEL	KS1680H	PRINTING ACCURACY	1200x1200dpi、1200x1800dpi
NUMBER OF PRINTHEAD	1680	PRINTING METHOD	White and Color
NUMBER OF NOZZLES	4	PRINTING SPEED	40 seconds/A3image
PRINT WIDTH	35.56mm	PRINTING DIRECTION	Unidirectional and bidirectional
NOZZLE RESOLUTION	600dpi(2 colors, 1 color)、300dpi(4 colors)	PRINTING SOFTWARE	Power Plotter 7
COLOR COUNT	4 channels, 4 colors	PRINT GUARANTEE SCOPE	Temperature:18-30°c Humidity: 45-65% (no condensation
SPEED	30~60Khz	DISPLAY RESOLUTION	Not less than XGA(1024 x768)
INK DROPLET SIZE	3.5~19PL	GRAPHIC FORMAT	Tiff/JPg/Eps/Ai/Ps/Png/Cdr/Pdf
SPRAY INTENSITY	7~9m/s	INK TYPE	Environmentally friendly textilecoatingink
INK	Water based.solvent, UV	VOLTAGER EQUIREMENTS	AC220V/60Hz士1Hz
INK VISCOSITY	3~9CPS	EOUIPMENT POWER	300W
EQUIPMENT SIZE	1900mmx1350mmx870mm	EOUIPMENT WEIGHT	252KG
PRINTING RANGE	450mm600mm、372mm420mm、255mm305mm、870mm420mm、870mm420mm、950mm600mm

Technical Support

24/7 remote assistance

On-site installation and training

Lifetime software updates

See It In Action

Watch how the H-EASY DTG delivers exceptional print quality with speed and precision.

What DTG Can Print

Personalized Customization: Creative T-shirts, couples' apparel, graduation memorabilia.

Small-Batch Production: Independent fashion brands, niche streetwear, corporate event merchandise.

Cultural & Gift Items: Tourist souvenirs (e.g., canvas bags with local landmarks), holiday-themed products.

Print-on-Demand (POD): E-commerce platforms (fulfill orders as needed, reduce inventory overhead).

Transform Your Printing Business Today

Experience the power of industrial-grade DTG printing with unmatched precision and versatility. Get a personalized quote or schedule a live demonstration.
